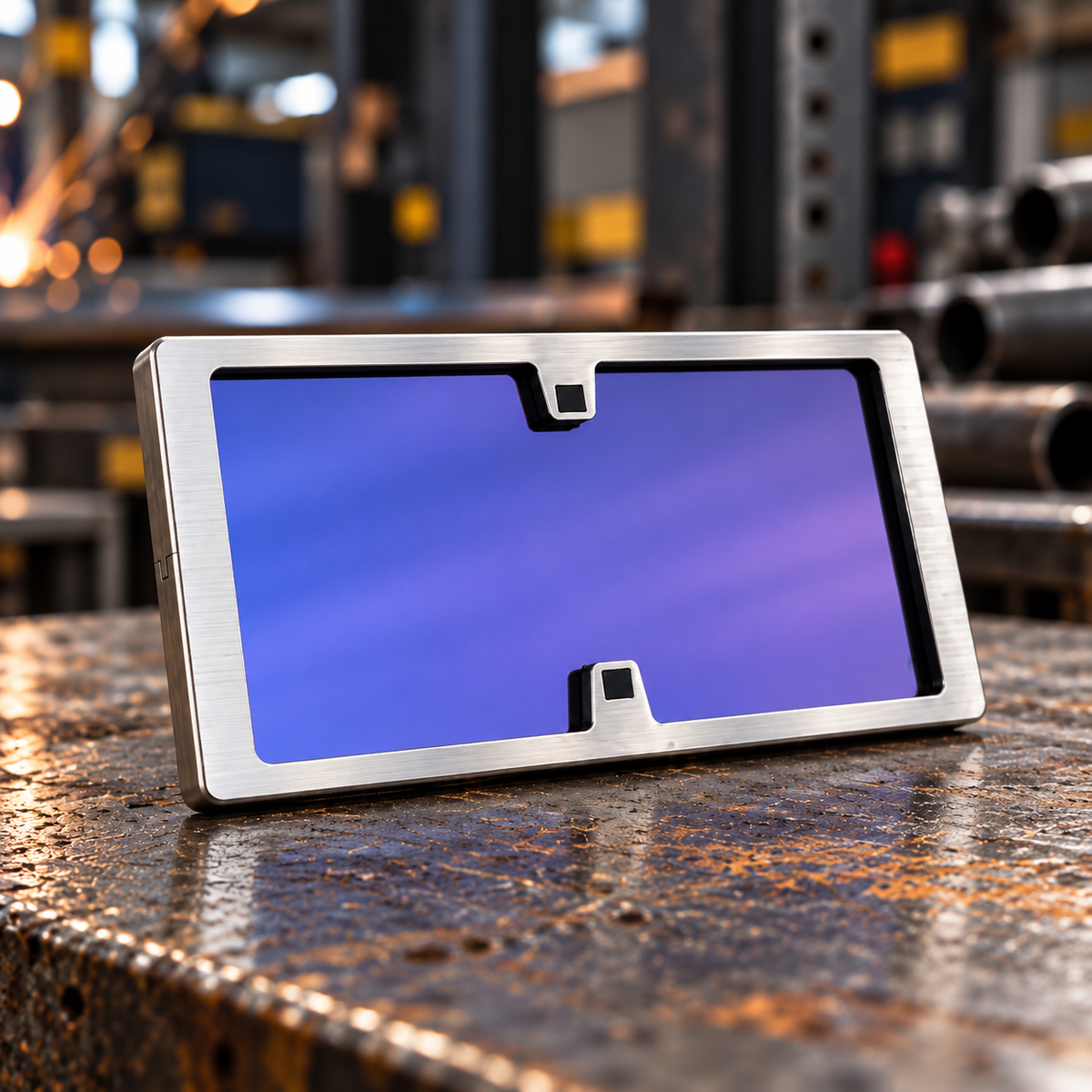

Apex One 8K
APEX ONE 8K
MONO-VISION | NEXT-GENERATION WELDING TECHNOLOGY
ONE LENS. MAXIMUM VISION. ZERO COMPROMISE.
Meet the Apex ONE 8K, a new standard in 2x4 auto-darkening welding technology.
Engineered to push the boundaries of what a traditional 2x4 welding lens can deliver, the Apex ONE 8K combines an industry-leading viewing area, exceptional optical clarity, ultra-thin glass construction, and rechargeable technology into one revolutionary design.
Featuring an expansive 3.72” x 1.73” viewing area, the Apex ONE 8K delivers what we’re positioning as the largest viewing window ever introduced in a traditional 2x4 welding lens. More visibility, fewer visual obstructions, and an incredibly clear view of your puddle.
But we didn’t stop at visibility.
The Apex ONE 8K incorporates ultra-thin 1.6mm welding glass, designed to help minimize unwanted internal reflections and glare while delivering a remarkably crisp, natural viewing experience. Combined with advanced True Color technology and premium optical performance, every detail of your weld comes into focus.
Built around a stainless steel frame, the Apex ONE 8K also offers improved thermal management by reflecting infrared energy that contributes to heat buildup within the cartridge.
Powered by a rechargeable lithium-ion battery with convenient USB-C charging, the ONE 8K eliminates the hassle of constantly replacing disposable batteries. A single charge delivers up to 40 hours of welding operation.
This isn’t another variation of an existing welding lens. This is Apex raising the bar on what a 2x4 lens should be.
One Vision. One Standard. Apex ONE 8K.
TECHNICAL SPECIFICATIONS
- Cartridge Size: 4.25” x 2”
- Viewing Area: 3.72” x 1.73”
- Cartridge Thickness: 0.20”
- Glass Thickness: 0.062” (1.6mm)
- Light State: DIN 2.5
- Available Fixed Shades: DIN 10 / DIN 11
- Optical Classification (DIN 10): 1/1/1/1
- Optical Classification (DIN 11): 1/1/1/2
- Lens Technology: True Color / Mono-Vision
- Power Supply: Rechargeable 25mAh Lithium-Ion Battery
- Charging Connection: USB-C
- Battery Runtime: Up to 40 Hours
- Charging Time: Under 1.5 Hours
- Arc Sensors: 2 Independent Sensors
- Switching Speed: 1/10,000 Second
- Delay Time: 0.1–0.6 Seconds
- TIG Capability: Greater than 10A
- Frame Material: Stainless Steel
- Compatibility: Standard 4.25” x 2” Welding Hoods
THE APEX STANDARD
APEX gear is developed around what matters behind the hood: visibility, control, comfort, and dependable performance. From optics to protection, every product has a purpose, helping you focus on the weld and get the job done.
