ApexGold Digital

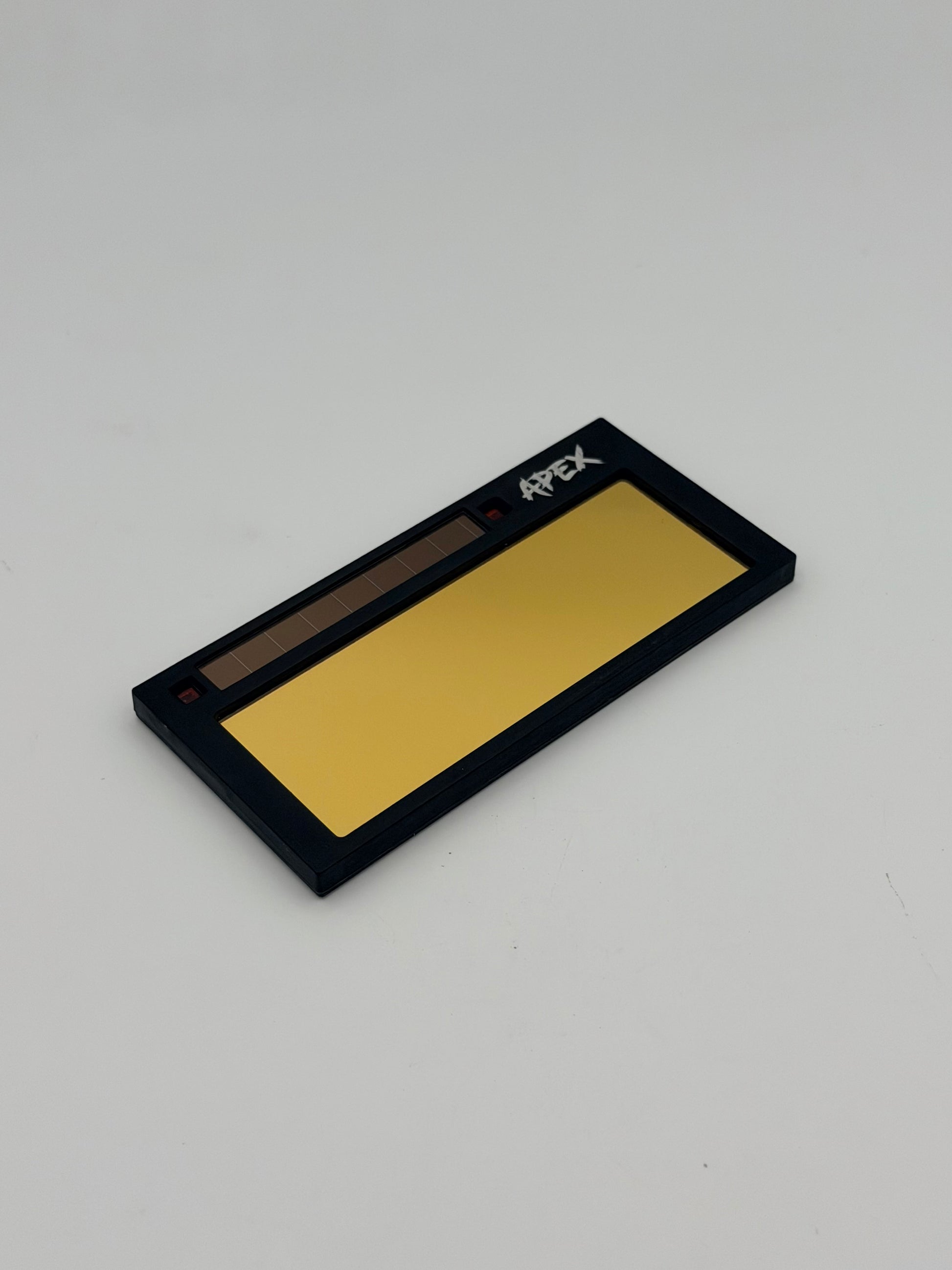

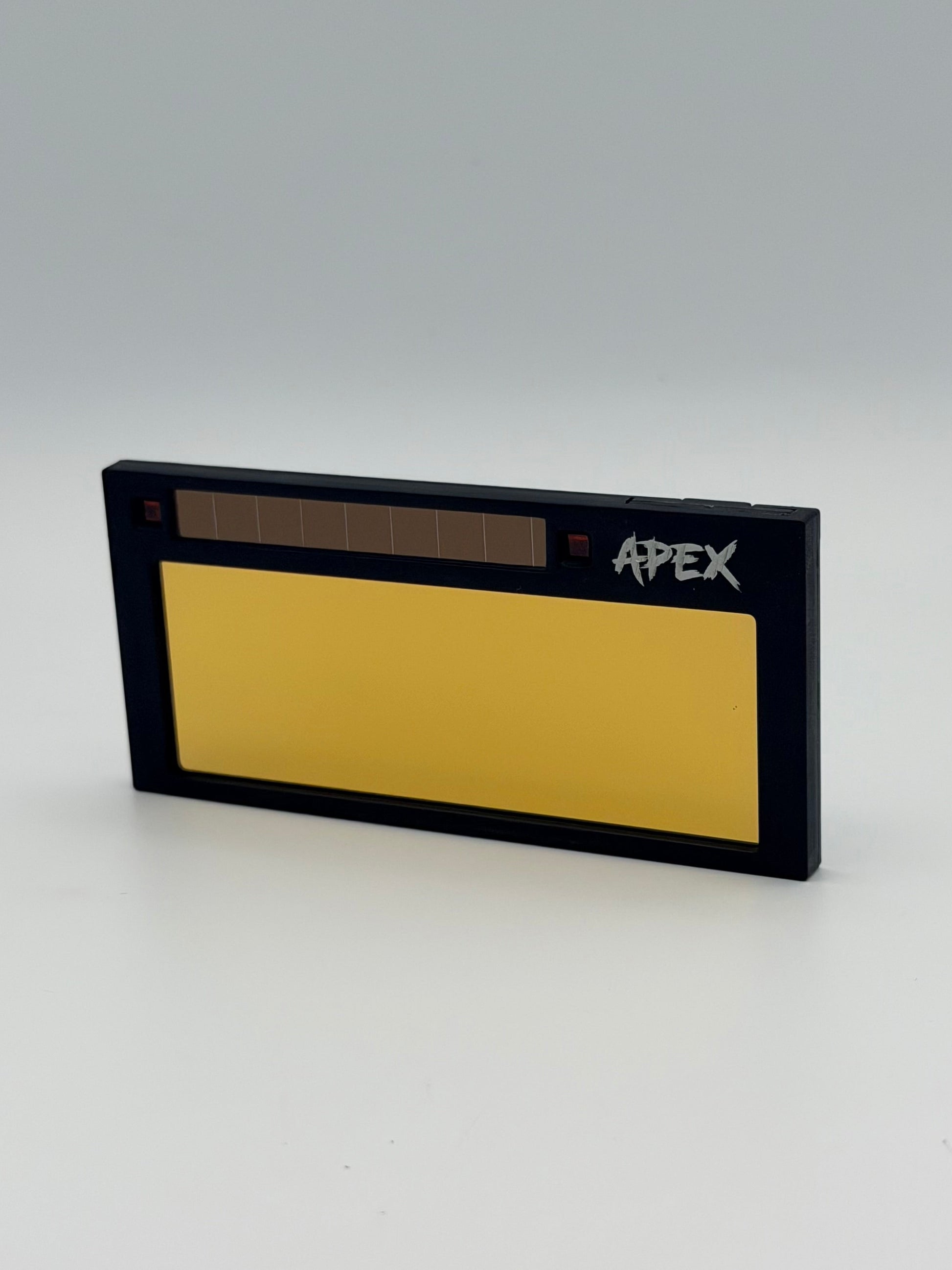

ApexGold HD Digital Welding Lens

Precision Refined. Vision Redefined.

The ApexGold HD is the next evolution of high-definition welding filters—engineered for welders who demand the best. Building upon the optical legacy of its predecessors, this latest-generation lens delivers ultra-crisp clarity, improved arc sensors for better TIG performance, next-gen durability, and an even more vivid blue puddle effect for unmatched weld puddle control.

Now 3mm thinner than past generations, ApexGold HD offers a slimmer, more streamlined profile without sacrificing strength or performance. Featuring a fully digital control system, this lens eliminates traditional dial buttons entirely and provides digital shade adjustment from 8–13 for precise, consistent tuning in any welding environment.

With our enhanced contrast filter, ApexGold HD delivers improved depth perception, refined color accuracy, and next-level eye protection against UV and IR. The upgraded gold coating sharpens your view while dramatically reducing glare and reflections—keeping your vision clear, comfortable, and focused from start to finish.

Whether you're stacking dimes or running long beads, ApexGold HD helps you weld cleaner, longer, and better.
Welcome to the gold standard—elevated.

Specifications

• Shade: 8–13 (Digital)

• Warranty: 1 Year

• Optical Rating: 1/1/1/2

• Viewing Window: 1 3/8" × 3 11/16"

• Thickness: 6mm (3mm thinner than past generation)

• Eye Protection: UV/IR Protection up to Shade 16

• Sensitivity: Adjustable from Low to High

• Dark to Light Delay: Adjustable from Short to Long

• Power Supply: Solar Cells and 2 Lithium CR1025 Batteries

• Switching Speed: 0.2 milliseconds

• Arc Sensors: Two independent wide-range sensors (optimized for TIG welding)

• Certifications: Meets ANSI Z87.1 and CE 379

Note: This lens will fit most standard 2" × 4" welding helmets. In some helmets or aftermarket flip-front attachments, you may need to manually expand the opening for proper fit.
